Japan USA PRECISION Tools
Japan USA Precision Tools specializes in machines & tooling for tight tolerance applications. We currently feature Takezawa brand Precision Reamer Tools tailor-made in Tachigi,Japan.
Please advise Your Name, Contact Email and Project Details to Request an Express Quotation or click the RFQ Link above.

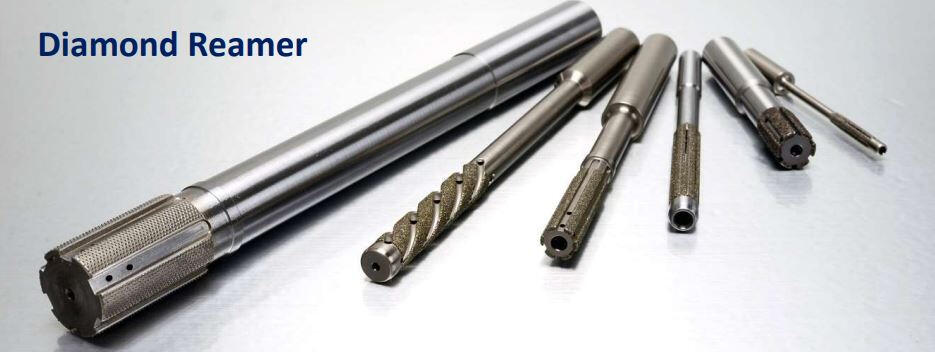

The Takezawa Diamond Reamers range in size from 3/32" (2.5mm) to 6" (150mm)

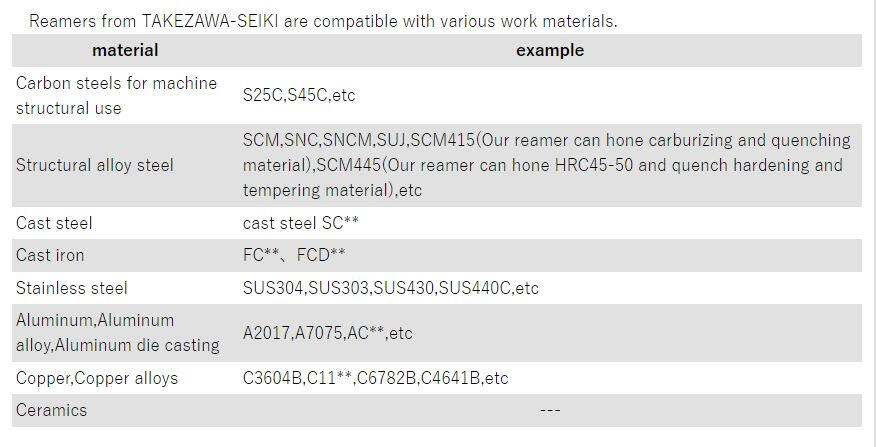

They are time-proven to deliver superior accuracy with extended tool life in demanding low-tolerance honing applications in cast iron, hardened steel, alloy steels, aluminum, bronze, brass & ceramics.Three Diamond Reamer Models/Reference Examples:

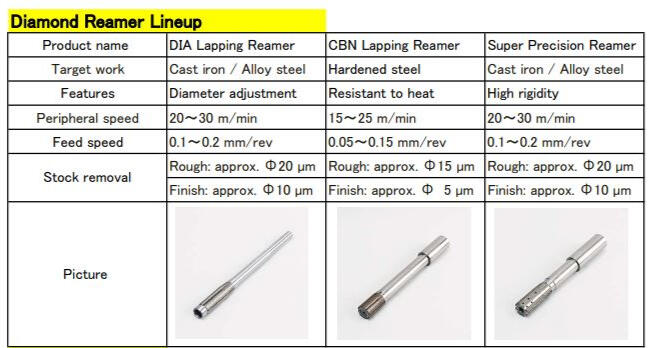

DLS Model
1. Standard type for through holes.
2. Adjustable type.
3. The abrasive grain is DIA or CBN electrodeposition.DR Model
1. Standard type for blind holes.
2. Adjustable type
3. The abrasive grain is DIA or CBN electrodeposition.SL Model
1. Standard type for through holes.
2. Nonadjustable type.
3. The abrasive grain is DIA or CBN electrodeposition.
